Dettagli:
|
Materiale di base: | Panno di vetro importato | Tipo adesivo: | Adesivo in silicone |
---|---|---|---|
Grado: | Grado H | Carta di rilascio: | NO |
Spessore tela base: | 0.12mm | Spessore del nastro: | 0.18mm |
Allungamento: | 4% | Resistenza adesiva all'acciaio: | ≥3,8N/10mm |
Resistenza alla trazione: | ≥ 210N/10mm | Applicazione: | Per bobine motore, isolamento batterie, schermatura ad alta temperatura e protezione superficiale |
Description:

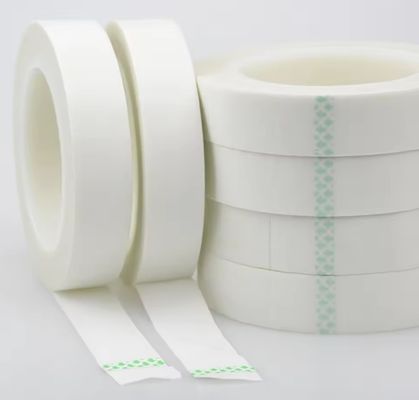

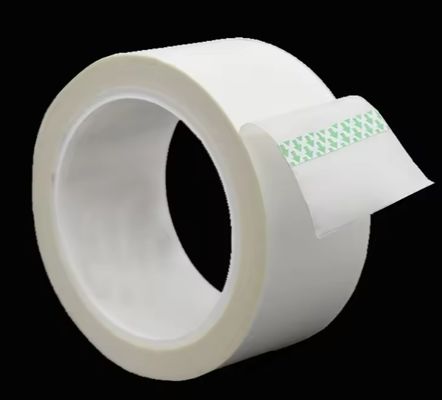

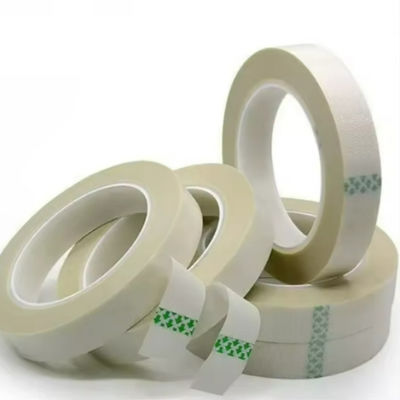

The high-performance silicone-based adhesive cloth tape is specifically engineered for demanding industrial environments. It offers exceptional heat resistance, outstanding mechanical strength, and long-lasting adhesion, effectively addressing challenges related to high temperatures, abrasion, and electrical insulation.
With broad application capabilities, it is suitable for motor coil wrapping, battery insulation protection, high-temperature process shielding, and surface protection of various materials, serving as a reliable multi-purpose industrial insulation and protective solution.
Features:
Excellent thermal stability for prolonged use, with a continuous operating temperature of 180°C and a short-term tolerance of 200°C.
Specifications:
1 |
Base cloth Thicness |
mm |
0.120±0.01 |
0.129 |
---|---|---|---|---|
3 |
Tape thickness |
mm |
0.180±0.01 |
0.181 |
4 |
BDV |
KV |
≥2.5 |
2.7 |
5 |
Tensile strength |
N/10mm |
≥210 |
237 |
6 |
Elongation |
% |
≥3 |
4 |
7 |
Adhesion strength to steel plate |
N/10mm |
≥3.8 |
4.1 |
8 |
Heating 260°C/30min |
No deformation, No tape end backturn |
||
9 |
Thermal grade |
H |
Application:
